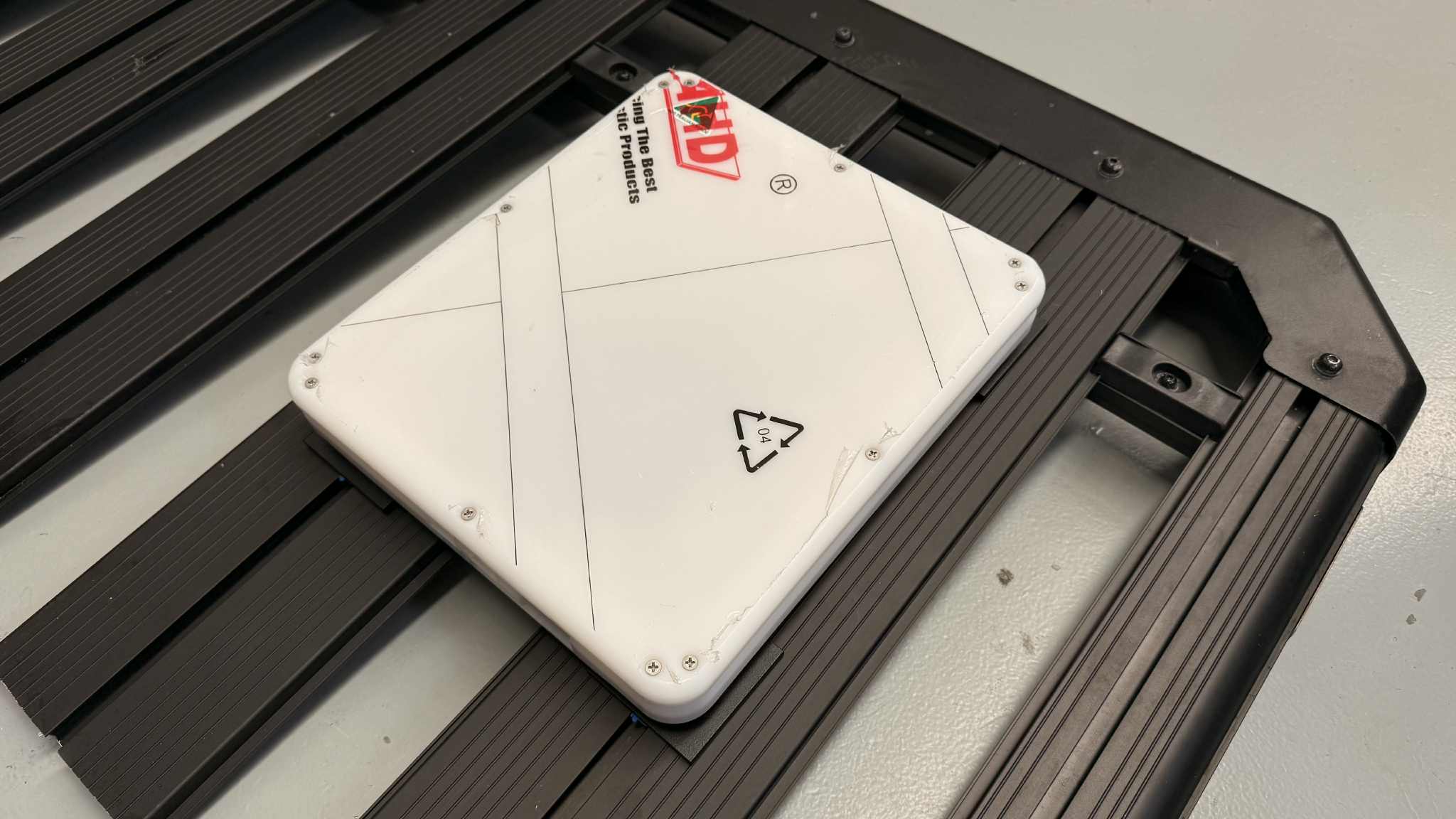

Designed specifically for non-ferrous, non-magnetic, and aluminum roof rack systems. Perfect for users who want the convenience of a magnetic-style quick release, this kit provides instant 12V power access through an integrated Anderson connection on our highly protective Starlink Mini case. Attach or remove your setup in under 10 seconds – fast, secure and hassle-free.

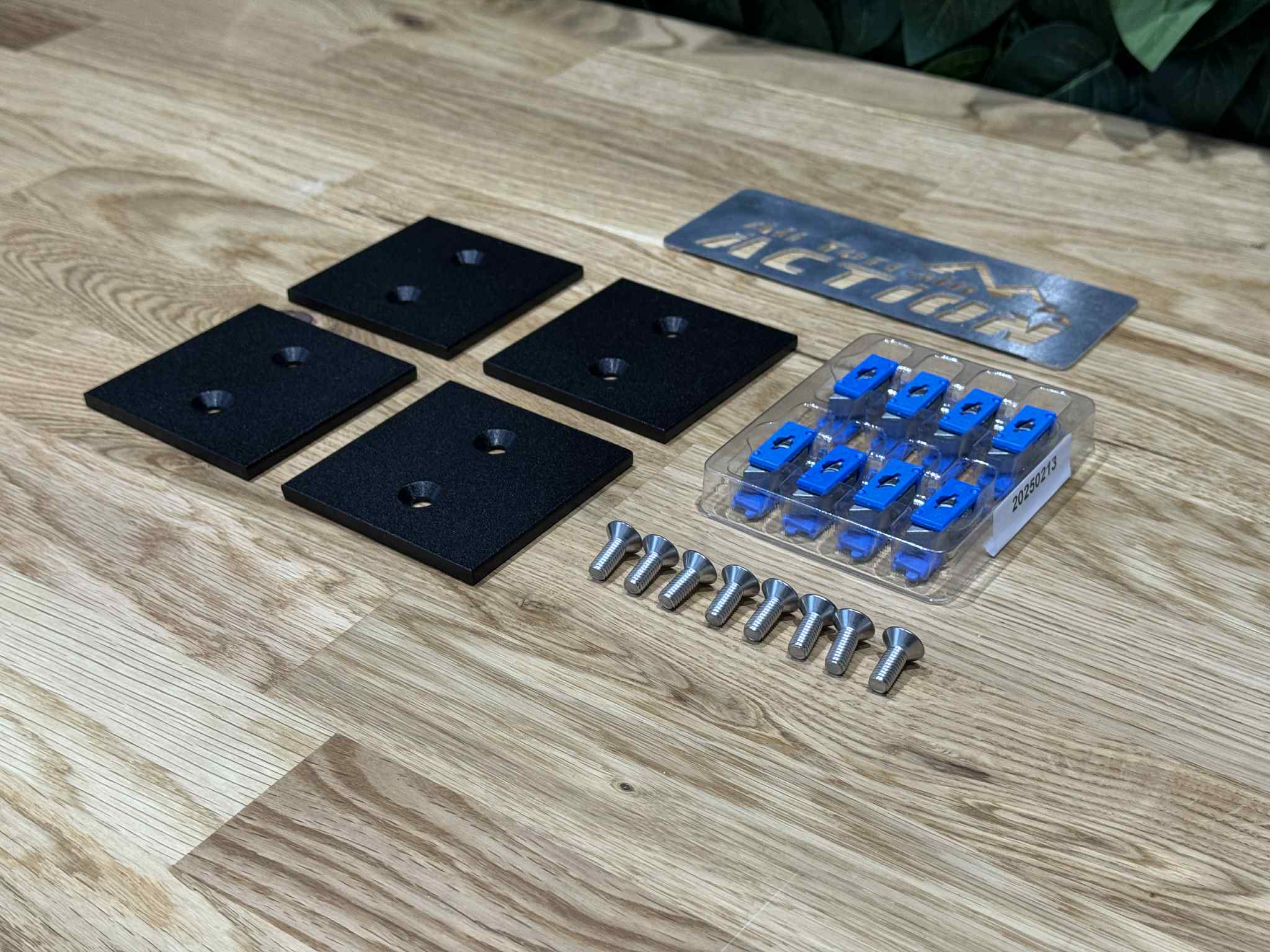

This quick release kit includes the following;
- All Terrain APEX Case with Magnets PreInstalled into Case
- 4x 75x75mm Metal Plates with Predrilled M6 Countersunk Holes
- 8x 15mm M6 Stainless Steel Screws
- 8x Zwiftloc Fittings for Roof Rack Channel

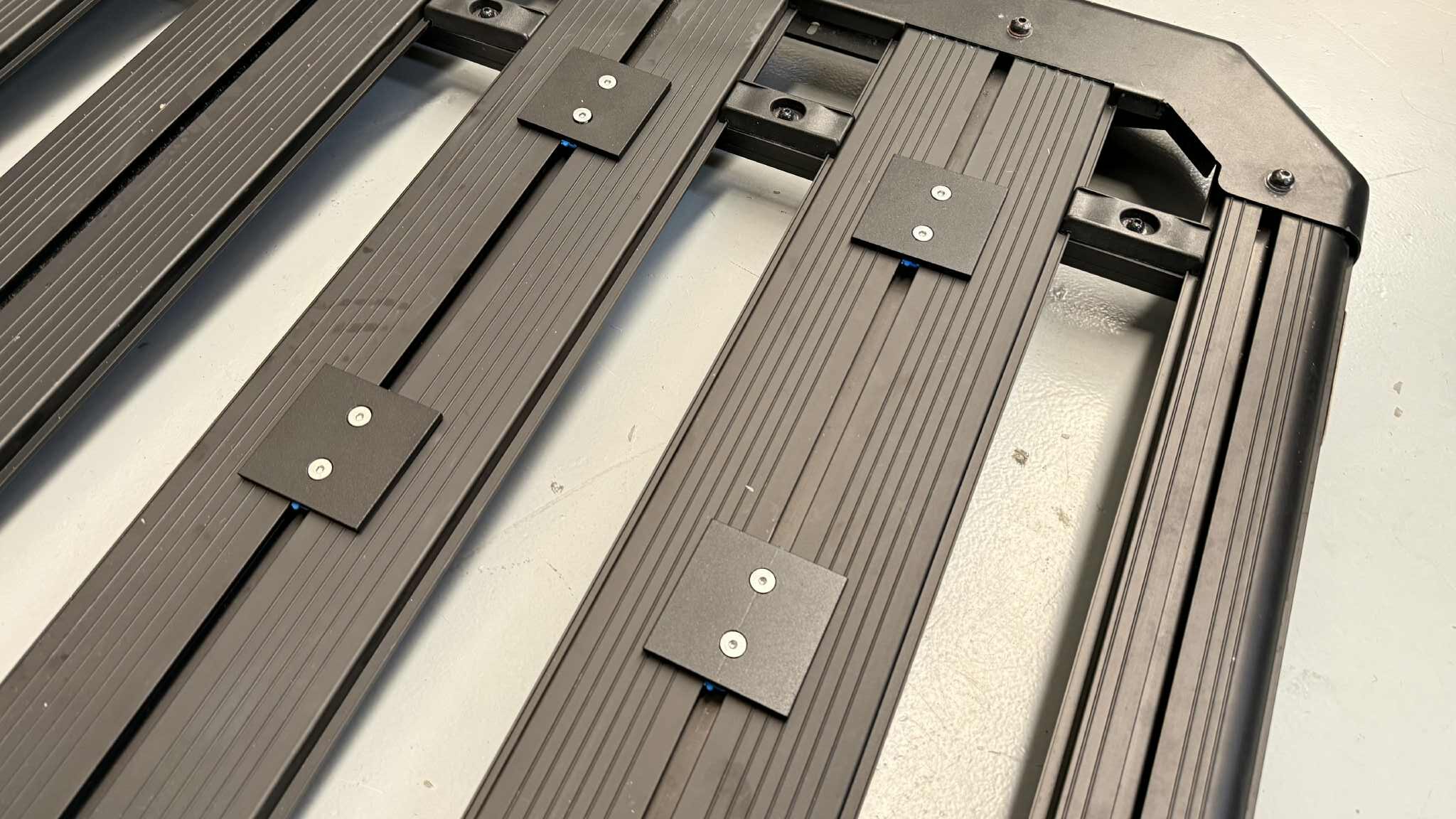

Our quick-release design uses 5mm steel plates with M6 countersunk fittings secured to twin Zwifloc attachments. The system is also compatible with other M6 channel nuts, provided they are spaced to align with our Starlink Mini case’s magnetic mounting points. This is currently suited for Rhino Rack Pioneer 6 and we have had customers sucsesfully use these also on Savage Offroad roof rack platforms, this would be compatible with many other rack systems as well as the plate positions can be adjusted on the channel as required.

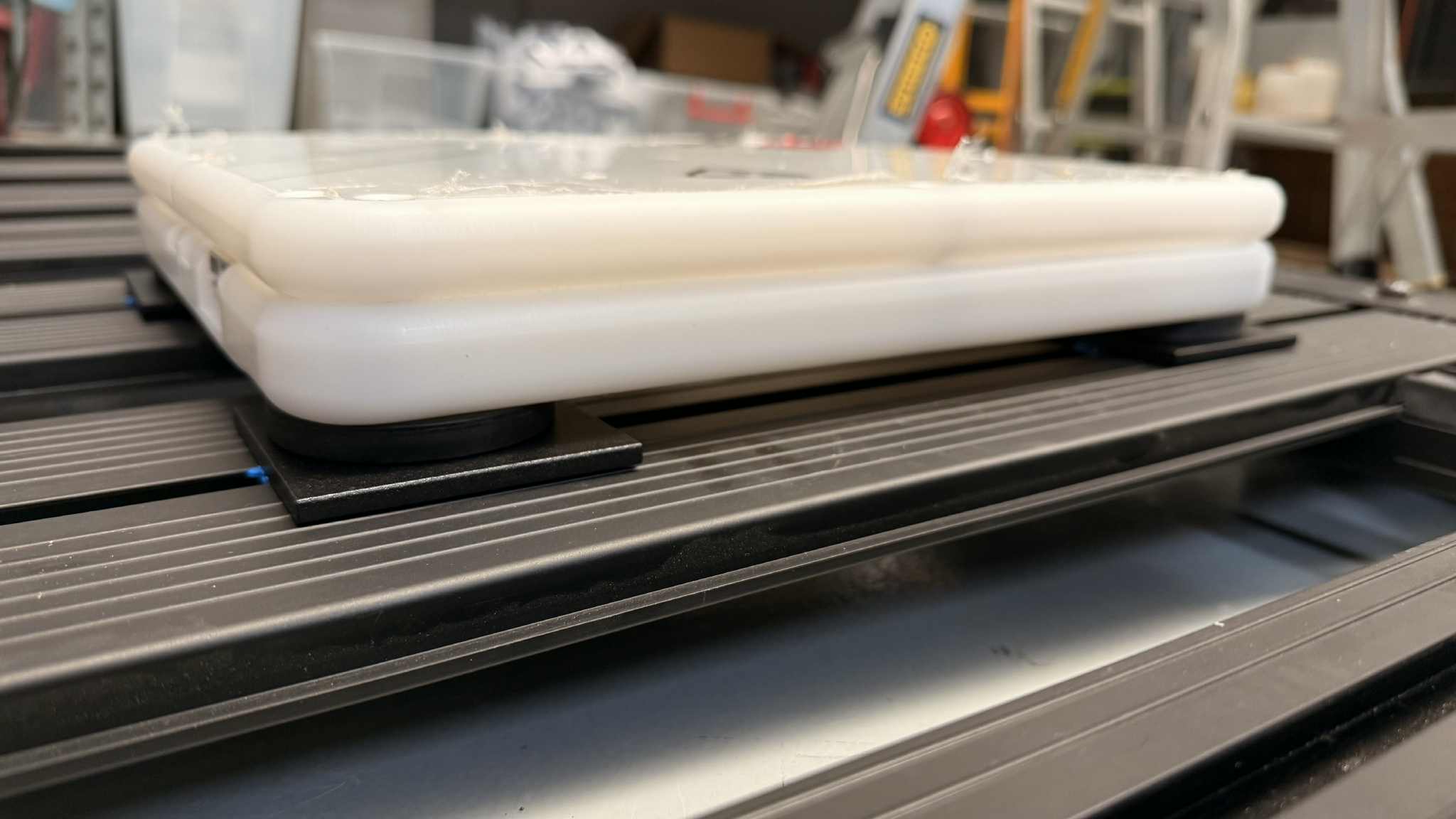

The magnets are threaded directly into the case, eliminating the need for any additional bracket system. They snap securely into place with an impressive 72kg of pull force, making attaching and detaching fast and reliable.
This setup is ideal for roof rack systems that require a temporary installation or a convenient quick-connect/quick-release option. Power is managed through a simple 12V Anderson connection—plug in or disconnect in seconds.
Inside the case, a built-in voltage regulator ensures that any 12V DC supply is properly regulated, allowing the Starlink Mini to operate safely and efficiently from vehicle power systems.
