Starlink RV Checker Plate RJ45 Passthrough Socket

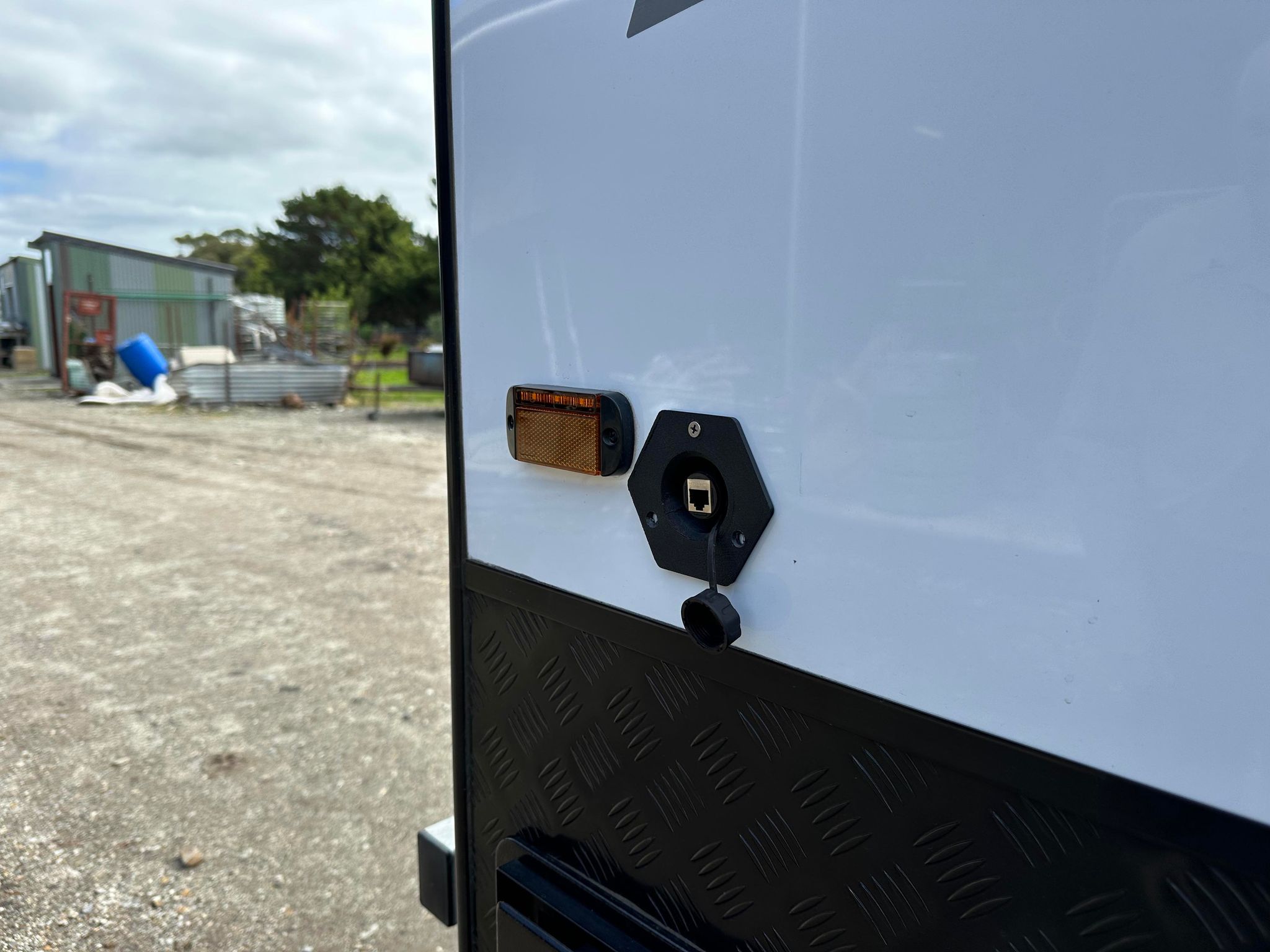

Revamp your Starlink cable setup with our modified version, featuring a Bulkhead Plate and Recessed Socket, available in both Black and White options. This Bulkhead mounting plate boasts an impressive IP68 rating, ensuring durability and simplifying the process of mounting your Starlink Setup on your boat or caravan.



  • This is suitable for Starlink V2 (rectangle starlink) but the standard cable must be modified to have RJ45 T56B ends we provide modification service here.
  • Ready for use with Starlink V3 (2023 release bigger standard starlink) the factory cable will connect to this. You will also need an additional ethernet cable.

Consider buying a weatherproof cable protector that fits over the end of the cable to screw and seal it from water and moisture into the faceplate. This is ideal for keeping the Starlink connected in wet weather, as it protects the plug from moisture, reducing the risk of short circuits or corrosion. It is especially recommended for use near coastal waters where salt may be present in the air.

Click & Collect For Items In Stock

  • 100% Fitment Guarantee
  • Aftersales Installation Support
SKU: N/A Category:

$52.80$105.60 incl. GST

Revamp your Starlink cable setup with our modified version, featuring a Bulkhead Plate and Recessed Socket, available in both Black and White options.



This Bulkhead mounting plate boasts an impressive IP68 rating, ensuring durability and simplifying the process of mounting your Starlink Setup on your boat or caravan.

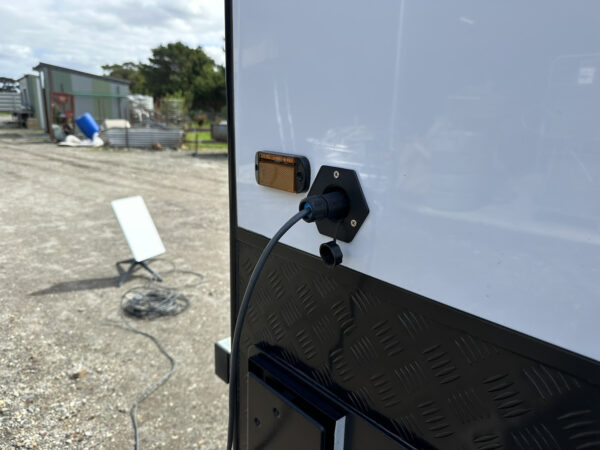

To seamlessly install the plate, follow these steps: Begin by attaching it to your pre-cut surface and firmly securing it with screws. If needed, enhance protection by applying silicone along the edges. Next, connect the modified Starlink Cable to the exterior using an IP68 Cable Joiner, guaranteeing its resilience against environmental factors.



For times when the setup is not in use, simply screw on the waterproof cap to the exterior port.

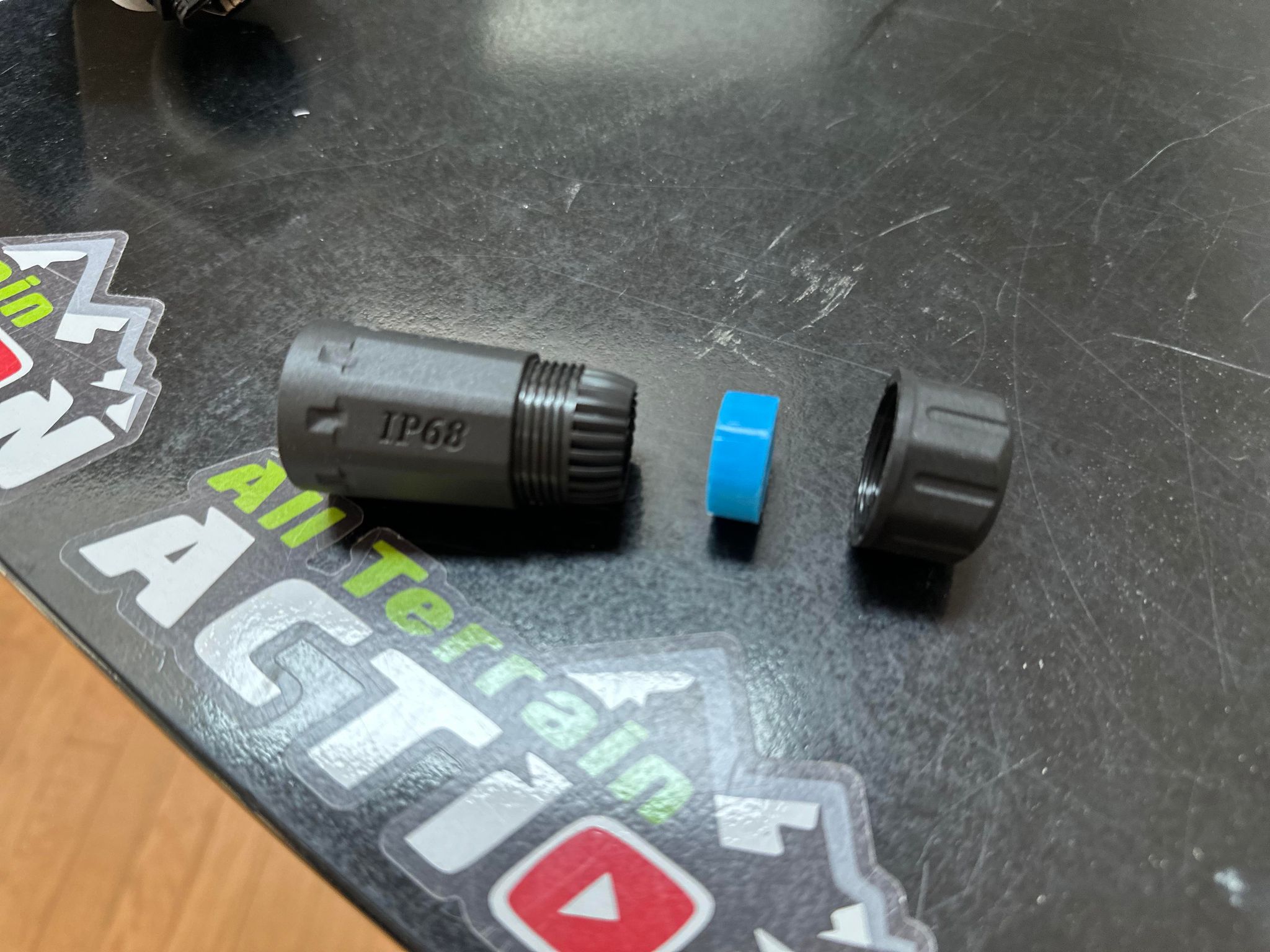

Included in the package are the Passthrough 3D Printed Mount and Waterproof Joiner for RJ45 passthrough, 3 stainless steel screws suitable for exterior install. Please note that the cable is not included in this package but we can modify your cable. Contact us as we can send you out a modified cable and once you get it you can post your orginal one back to us. So you’re not without your startlink working!



Yes we do RV installs, flat mount and and cable conversions in Melbourne contact us.



Hole size approx 44-46mm , front faceplate is 90mm wide and approx 25mm deep.



  • This is suitable for Starlink V2 (rectangle starlink) but the standard cable must be modified to have RJ45 T56B ends we provide modification service here.
  • Ready for use with Starlink V3 (2023 release bigger standard starlink) the factory cable will connect to this. You will also need an additional ethernet cable.

Consider buying a weatherproof cable protector that fits over the end of the cable to screw and seal it from water and moisture into the faceplate. This is ideal for keeping the Starlink connected in wet weather, as it protects the plug from moisture, reducing the risk of short circuits or corrosion. It is especially recommended for use near coastal waters where salt may be present in the air.

Colour

White, Black

Weather Proof Connector

Yes, No
